Glazing
Depending on insulation requirements, double or triple glazing can be selected. Enhanced safety, noise reduction, and decorative variants are also available.

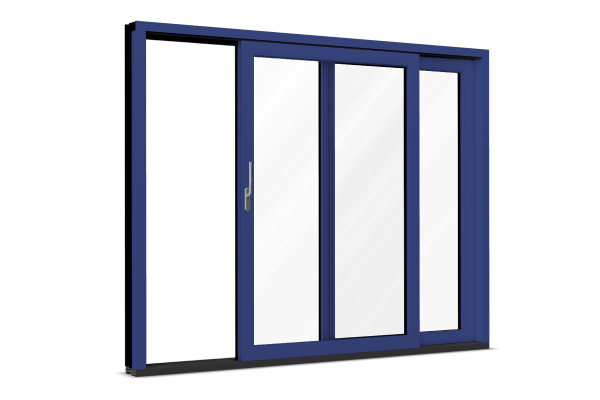

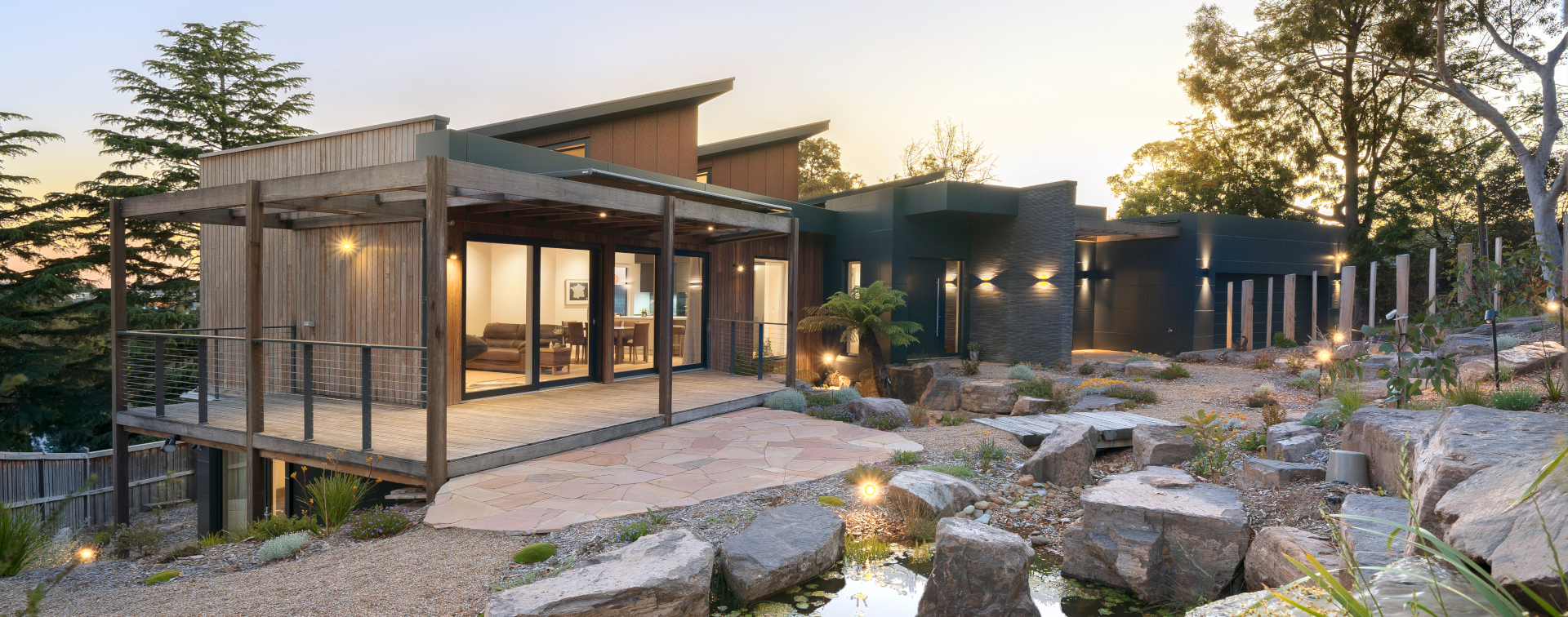

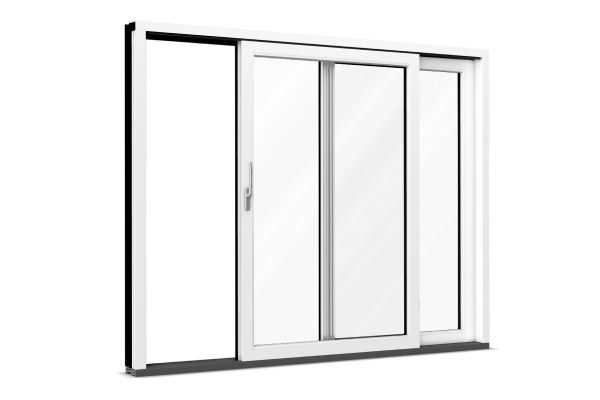

With one of our aluminum patio doors, properties are beautifully connected to the outside world. Slim frames and large glazed surfaces allow much light to stream in while the sturdy metal ensures a long-lasting product life and strong break-in protection. At Neuffer, a preferred opening can be chosen alongside a quality surface finish, purpose-designed glazing, and further features, resulting in a state-of-the-art final product that is perfectly tailored to individual requirements.
The Key Benefits
- Excellent weather protection: During production, we anodize aluminum to give it anti-rust and anti-corrosion properties to effectively withstand wear and tear.
- Low-maintenance surfaces: Compared to wood, for example, which requires oiling, metal surfaces can be easily wiped clean and require little upkeep due to their durability.
- High impact resistance: Thanks to the metal’s natural strength, our aluminum sliding patio doors can withstand very high wind pressures and won’t deform easily, which also makes for impressive break-in protection.
Technical Details
Our doors consist of much more than just a frame and glass. Their internal structures contain purpose-designed seals, strips, and more to ensure excellent functional performance.
Sash design
The majority of our aluminum door sashes sit flush and sleek with a slim frame.
Glass seal & strip
The seal ensures watertightness between the glazing and the sash while the strip provides contact pressure.
Chambers
Depending on the profile, a varying number of insulating chambers trap dense air to slow energy loss.
Choose the Opening Mechanism
We offer a range of opening systems for aluminum patio doors. Various premium sliding options that simply glide to the side are available, for example. A bifold option is then another possibility and makes for particularly full openings, while a lift & slide system is a further popular choice. Whatever system you choose, durable function and ease of use are a given.
Aluminum Patio Door Profiles
For each door system, we offer various models, also known as “profiles”, that differ in terms of their look, installation depth, and thermal performance. In terms of insulation, this is measured by the u-value – the lower the figure, the less heat will be transferred and the more energy-efficient the product will be.

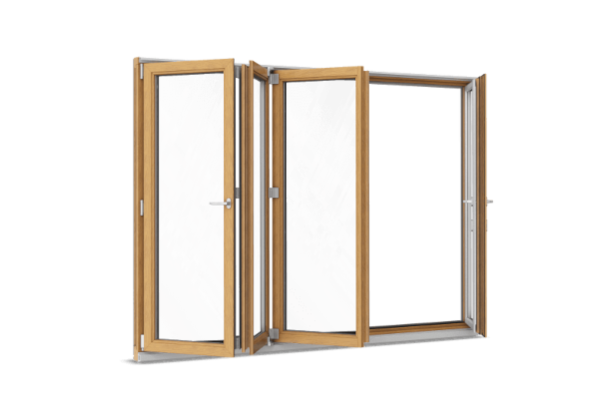

Our Bifold and Sliding Doors
Bifold Reynaers CF 77
Bifold Schüco ASS 70 FD

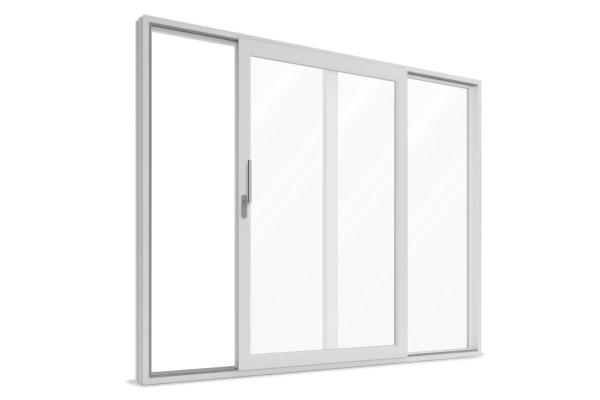

Slide Reynaers Hi-Finity

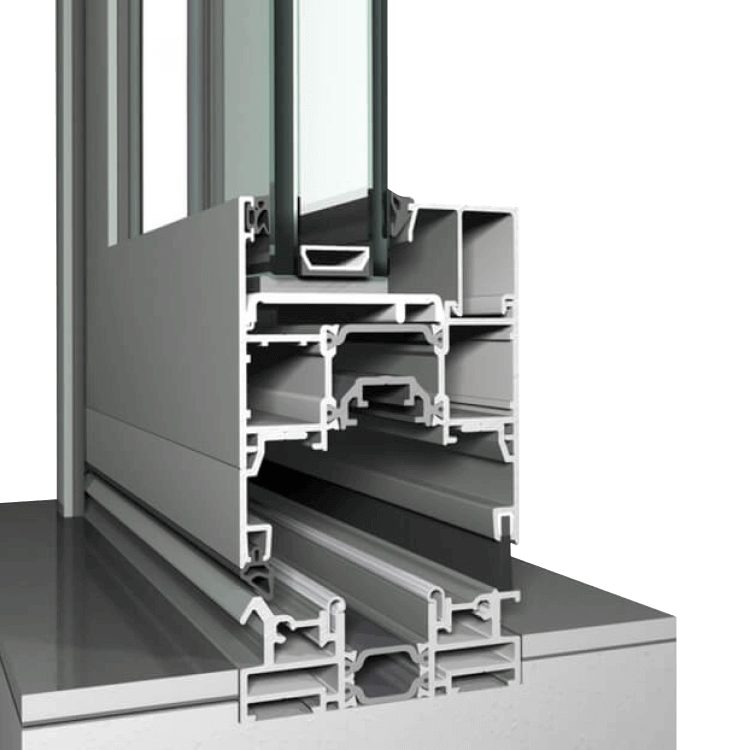

Bifold Reynaers CF 77
Numerous customization options for a particularly wide front
- Construction depth: 77 mm
- Compatible with glass with a 63 mm maximum thickness
- Choose between a flat bottom, a double weather seal, or low and high performance thresholds

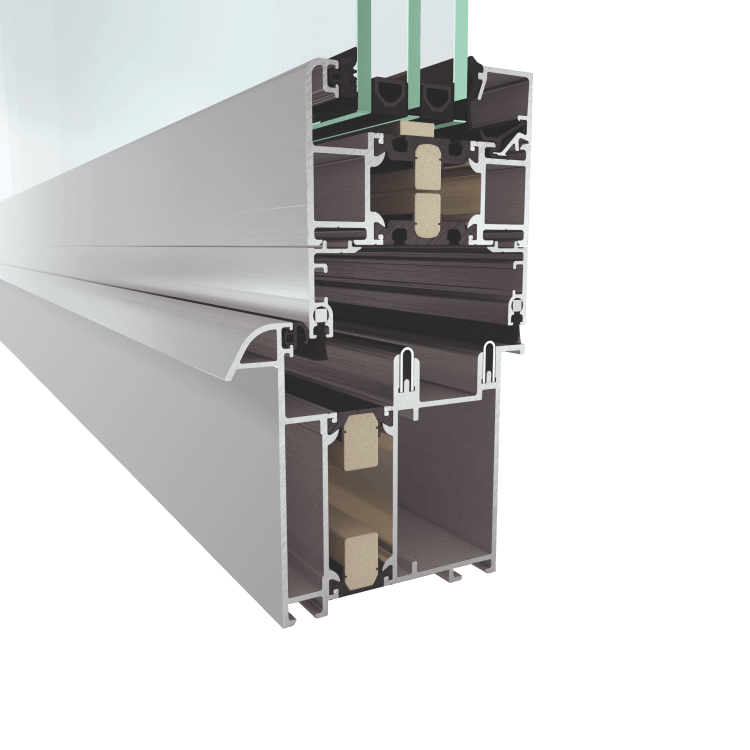

Bifold Schüco ASS 70 FD
Certified Schüco brand quality with high-tech magnetic locking
- Construction depth: 80 mm
- Compatible with glass with a 45 mm maximum thickness
- Folds to the left or right, inwards or outwards

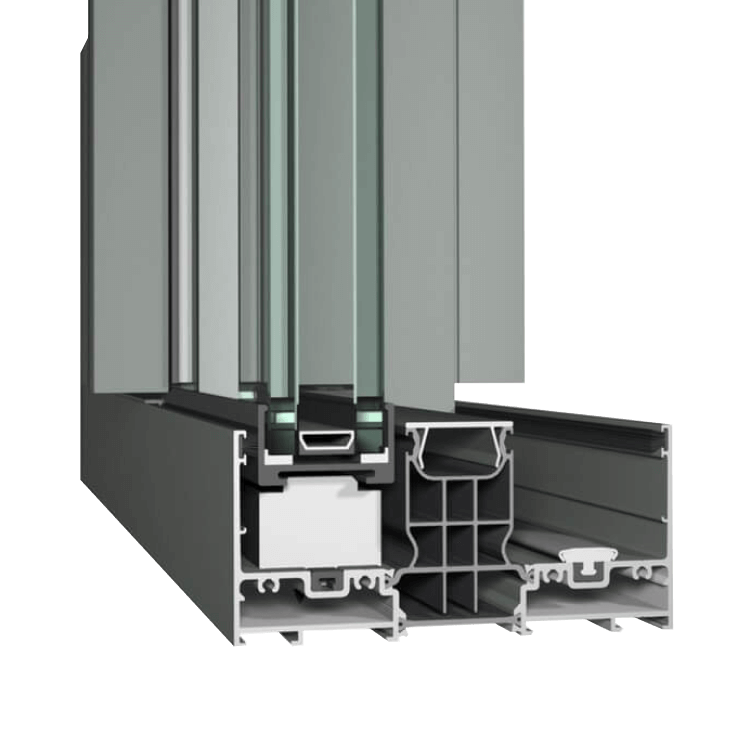

Slide Reynaers Hi-Finity
High-tech hurricane certified profile with concealed motor operation or manual operation with a mechanical or electrical lock
- Construction depth with 2, 3, or 4 rails : 148, 236, 389 mm
- Available with double & triple glazing with a 54 mm maximum thickness
- Uw-value: ≥ 0.80 W/(m²K)

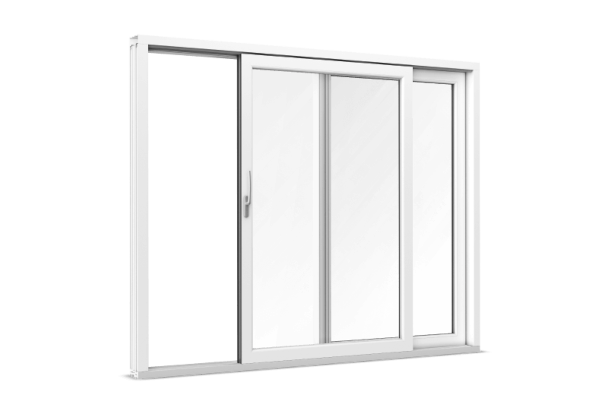

Lift & Slide Doors
Aluprof MB 77 (HI)
Reynaers CP 130
Reynaers CP 155
Schüco ASS 70.HI
Schüco ASS 77 PD.NI/HI
Schüco ASE 80.HI

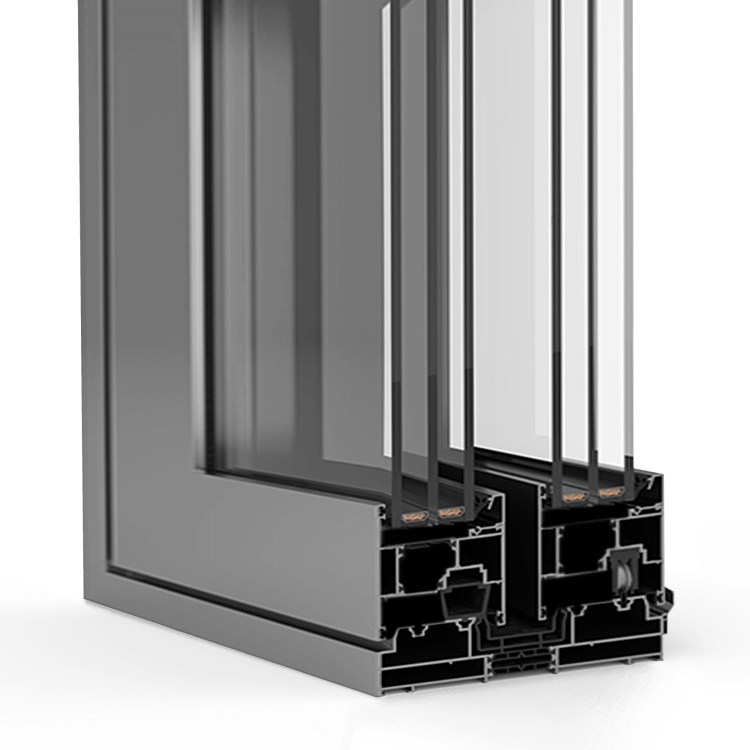

Aluprof MB 77 (HI)
The basic lift & slide model with a higher insulation option available
- Construction depth with 2 or 3 rails: 174 mm / 271 mm
- Uw-value: as low as 0.84 W/(m²K) with the HI variant
- Compatible with glazing with a 58 mm maximum thickness

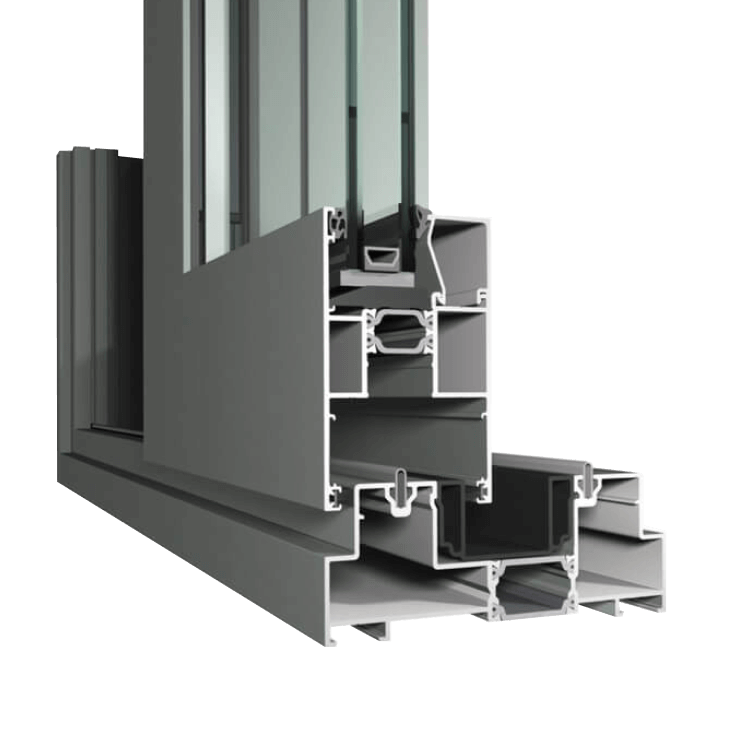

Reynaers CP 130
A basic system that allows for wide views out.
- Construction depth with 2 or 3 rails: 139 / 210 mm
- Holds panels weighing up to 300 kg
- Compatible with glazing with a 43 mm maximum thickness

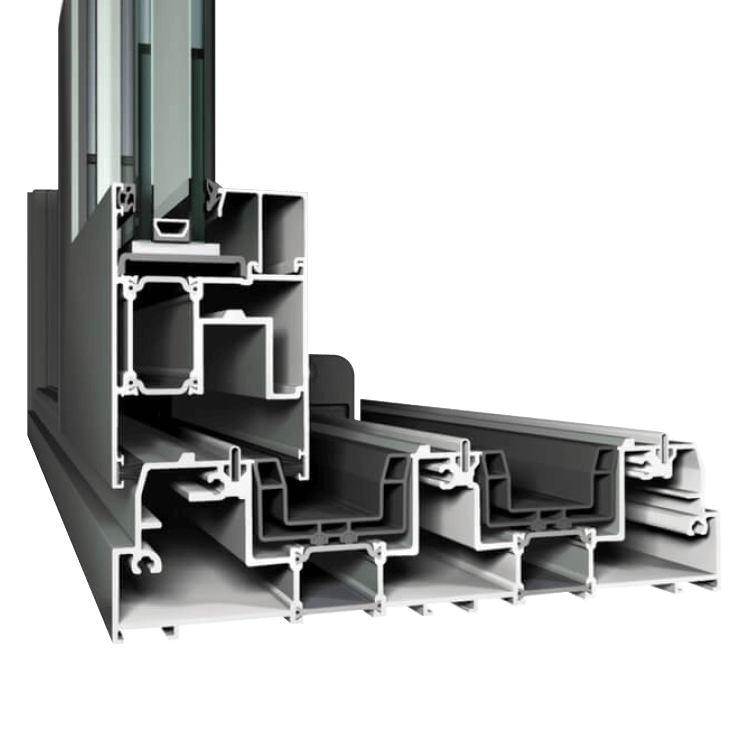

Reynaers CP 155
High-performance, hurricane certified system with a multi-railing solution available
- Construction depth with 2 or 3 rails: 155 / 242 mm
- High insulation variant and motorized operation available
- Compatible with glazing with a 52 mm maximum thickness

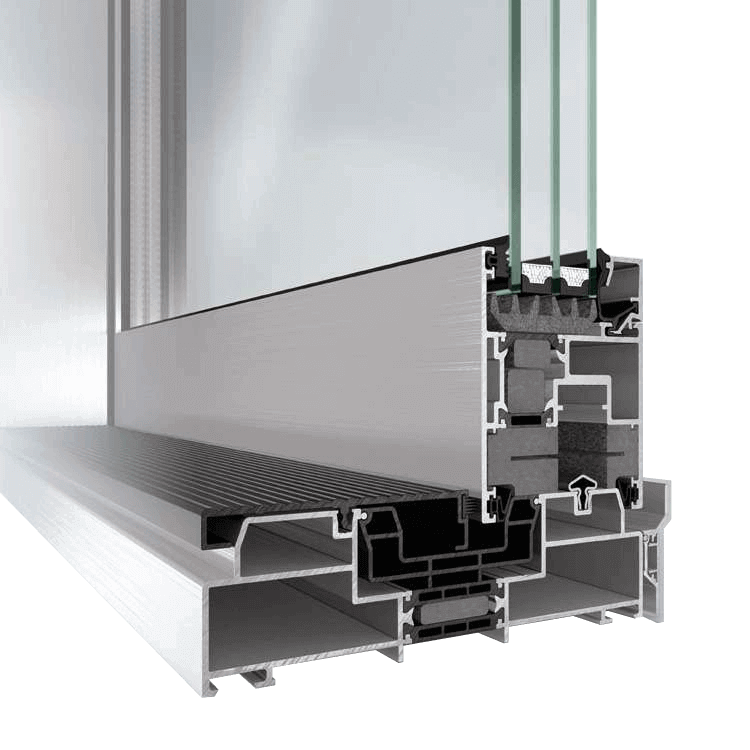

Schüco ASS 70.HI
Particularly stable and suitable for large dimensions
- Construction depth: 160 mm
- Holds sashes weighing up to 400 kg
- Compatible with glazing with a 52 mm maximum thickness

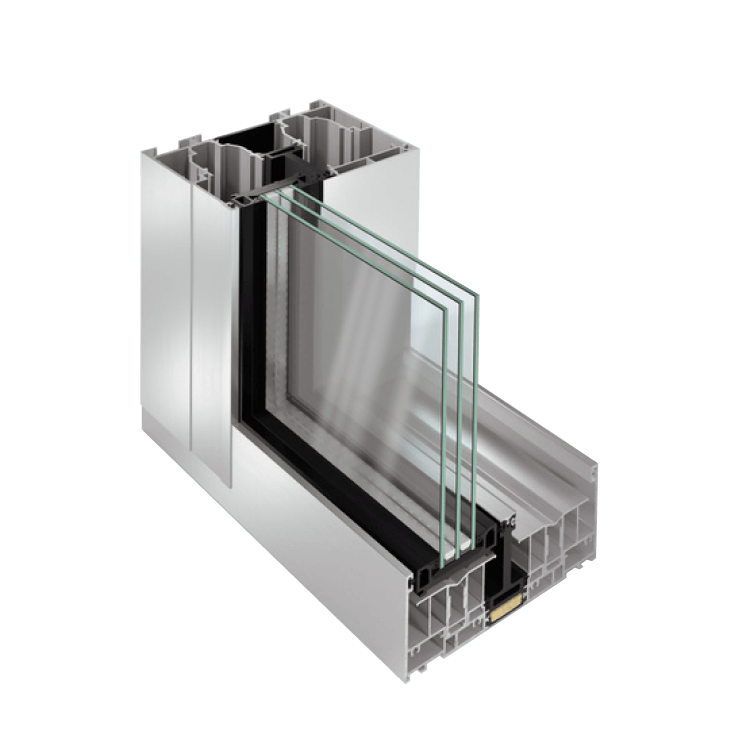

Schüco ASS 77 PD.NI/HI
For tailored insulation and award-winning panoramic design
- Construction depth with 2 or 3 rails: 197 / 297 mm
- Available with double & triple glazing with a 60 mm maximum thickness
- Basic insulation or higher thermal performance options available

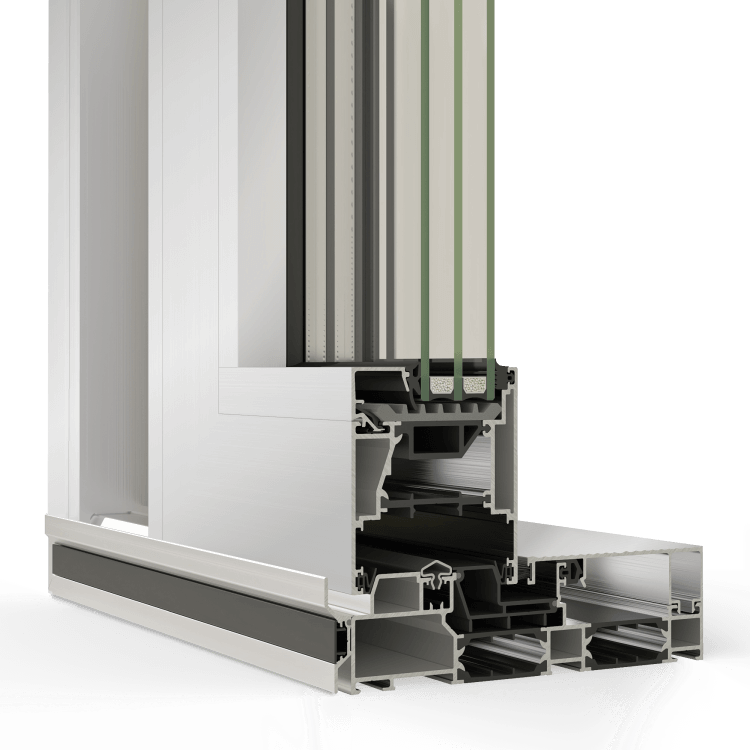

Schüco ASE 80.HI
Integrated insulation and multiple chambers ensure very good thermal performance
- Construction depth with 2 or 3 rails: 180 / 292 mm
- Uw-value: as low as 0.99 W/(m²K)
- Available with quality double or triple glazing with a 60 mm maximum thickness
At Neuffer, we are experts in manufacturing customized products. Simply provide us with your personal measurements and design ideas, and we will work with you to realize your individual wishes. Below, we present a small selection of customization options. If you would like more information about options such as glazing bars, roller shutters, smart home technology, and much more, please do not hesitate to contact us.
-
Colors
Select desired color
-
Glazing
Select glazing
-
Handles
Select handle type
Colors
Colors
Glazing
Handles
Our metal windows and doors can be powder-coated during manufacturing in a range of UV-resistant RAL colors and special decors.
White
Anthracite Gray
Gray Brown
Graphite Gray

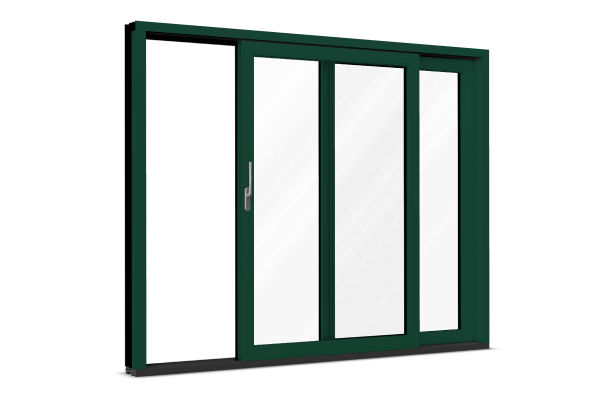

Moss Green
Other RAL colors
As well as functional double and triple glazing, frosted or ornamental glazed surfaces can be chosen for privacy and added charm.
Double Glazing
Triple Glazing
Safety Glass
Ornamental Glazing
Depending on the model, we offer a range of handles in white, silver, and more that can optionally be lockable with a key to improve security and child safety.

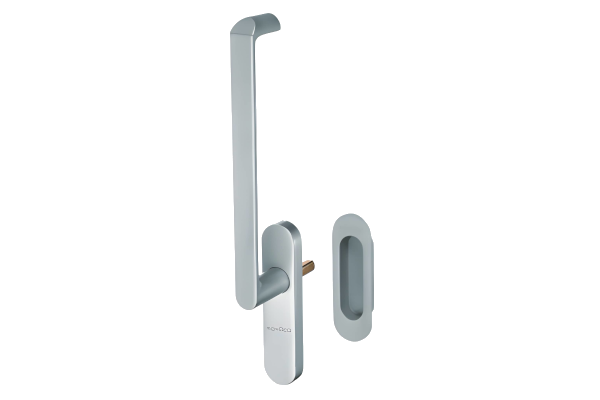

Standard Handle White Aluminum

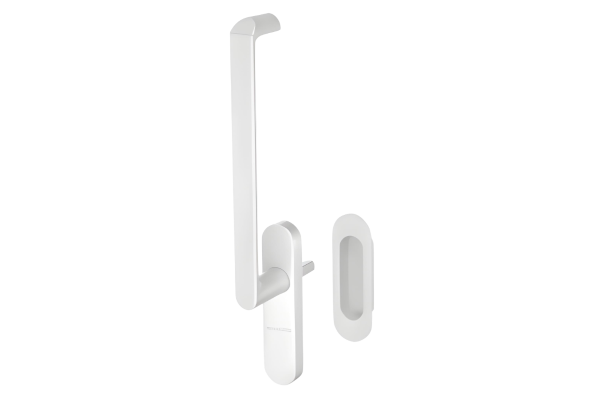

Standard Handle White

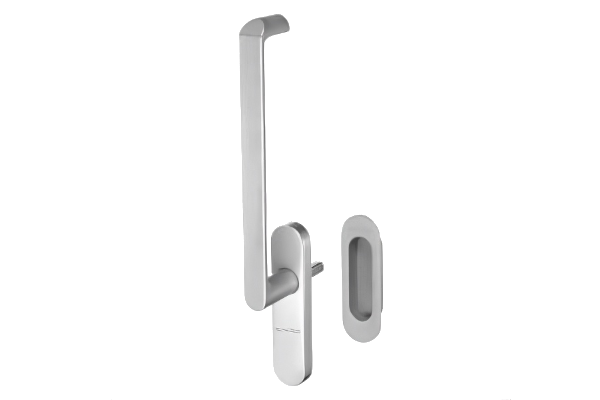

Standard Handle Stainless Steel
How Aluminum Compares to Our Other Materials
At Neuffer, depending on their opening mechanism, sliding doors can come in five different materials – vinyl, wood, aluminum, aluminum clad wood, and aluminum vinyl. No one material is necessarily better than another; Rather, each option offers its own unique benefits. vinyl, for example, is available with a pure sliding mechanism, a tilt and slide option, or a lift and slide one.
It is a modern material that can easily provide very good thermal insulation and low maintenance. Like aluminum, its sleek surfaces can be coated in a timber decor to add warmth to interiors. Wood, on the other hand, requires more upkeep but natural sturdiness is a given as well as truly bespoke grain patterns and textures that add authentic charm to doors.
The material is available with our bifold, tilt and slide, and lift and slide systems. For customers who want to benefit from the strong impact resistance and durability of metal but who are also attracted by the high insulation values of vinyl or the beauty of timber, our material combinations, aluminum clad wood or aluminum vinyl may be ideal. Featuring strong cladding on the exterior, which comes with a 10-year guarantee, the doors’ cores are made from wood or vinyl, which also shows on the interior and provide important style as well as functional performance.
The Perfect Solution for Every Project
Whether it’s a new construction or a renovation—at Neuffer, bespoke solutions are our core focus. Using our expert knowledge, we bring visions to life across the globe: from modern mountain chalets in the Rockies to elegant beach houses on the New Zealand coast. These projects showcase the versatility of our products and their ability to adapt to diverse climates and architectural styles. Your dream project is in the best of hands. Let’s create something great together—contact us today!
