Energeto 5000 System

Modern Design meets Functionality at Affordable Prices

Energeto 5000 System

Carbon fiber reinforced Ultradur strips are at the heart of the Energeto 5000’s performance. The innovative reinforcements replace the traditional steel inserts - minimizing the effect of thermal bridging. Fully bonded glazing further adds to the thermal performance, and 3-point seals offer excellent weather resistance. Security is assured with quality, low-maintenance, German hardware to provide burglary protection and peace of mind.

0.87

U-value W/m²K

6.5

R-value hr.ft2.°F/BTU

6

Internal Chambers

3

Sealing Levels

Energeto 5000 Features and Advantages at a Glance

  • R-value of 6.5 based on configuration
  • 234 (70 mm) installation depth
  • Double and Triple glazing available in thicknesses up to 1.5 inches (38 mm)
  • German made Winkhaus hardware ensure excellent functionality and security
  • European style Tilt & Turn opening
  • 3-point sealing provides weather resistance and additional insulation
  • Security options include burglary resistance classes up to and including RC2
  • Carbon fiber reinforced Ultradur inserts reduce thermal bridging
  • Fully bonded glazing increases insulation ability
  • 98.2% recyclable frames; cadmium, barium and lead free

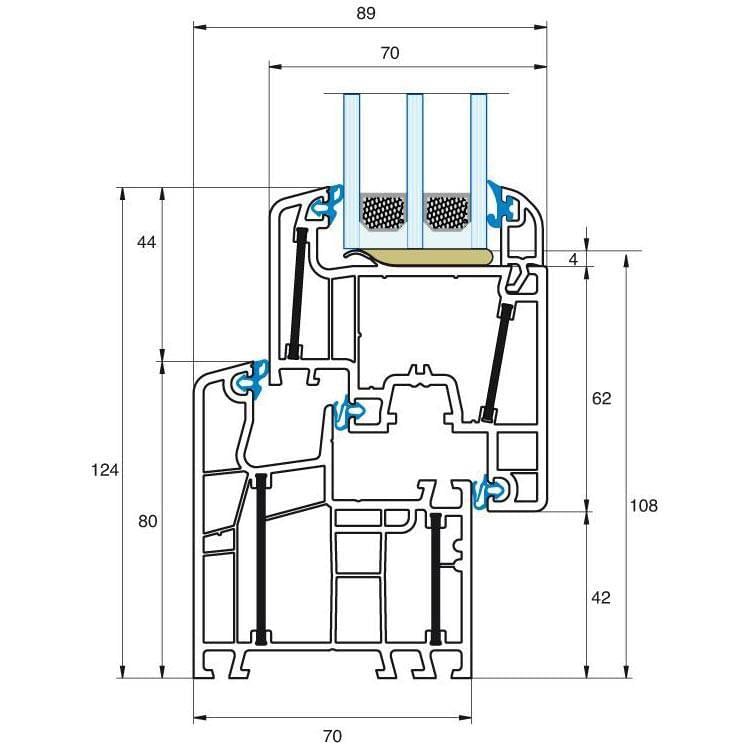

Innovative Insulation and a Multi-Chamber Core

Energeto 5000 components are not only tastefully modern and aesthetically pleasing but the state-of-the-art design also provides excellent thermal efficiency with our patented 6-chamber system.

Combined with double glazing, it will easily beat most standard domestic windows and with triple glazing, approaches Passive House level values.

High-quality profiles with carbon fiber reinforcement instead of steel eliminate thermal bridges, preventing heat from escaping the house. The three-point centre gasket system provides additional insulation and weather-proofing.

Energeto 5000: Innovation & Sustainability

Energy efficient windows and doors not only help to save on heating costs, but also insulate you from unstable energy prices while also reducing your environmental impact.

The Energeto 5000 provides outstanding heat and sound protection properties with the component materials playing a significant role in efficiency and sustainability.

During the development and the manufacturing process, we make sure that all the profiles are free of lead, cadmium and barium. This step not only protects your health, it also guarantees that the vinyl material is up to 98.2% recyclable.
