The TwinSet Energeto 8000ED combines excellent insulation, noise reduction and security properties into a single, premium window. Its tough, aluminum cladding coupled with carbon-fiber internal reinforcements make it both incredibly secure and weather-resistant. With 6 chambers, a 3⁹⁄₁₆ window depth and high-pressure precision insulating foam, the Energeto 8000ED easily surpasses Passive House standards ensuring maximum energy efficiency. For budget-conscious projects requiring the best energy performance and aesthetics, the TwinSet Energeto 8000ED cannot be beat.

0.73

U-value W/m2K

7.8

R-value hr.ft2.°F/BTU

3

Sealing Levels

6

Internal Chambers

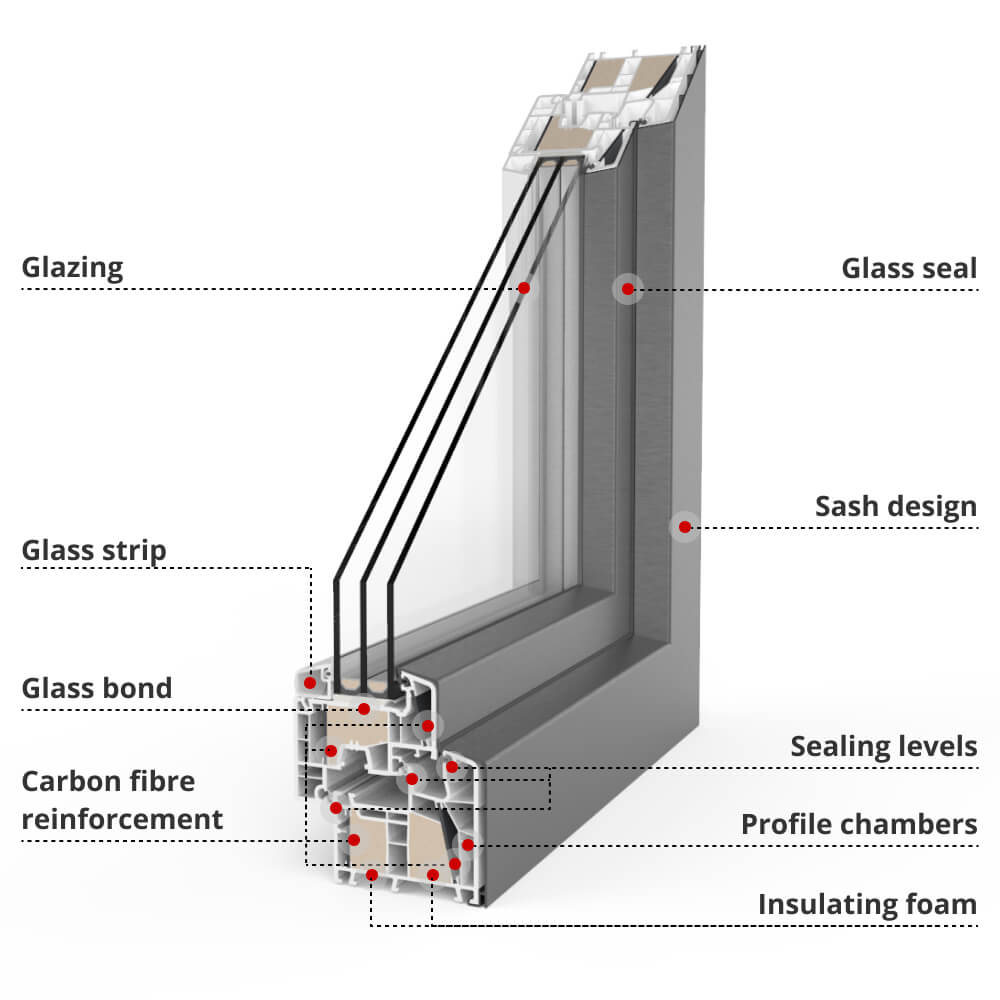

TwinSet Energeto 8000ED Overview

Innovative high-pressure polyurethane foam insulation
Ultradur® inserts to eliminate thermal bridging.

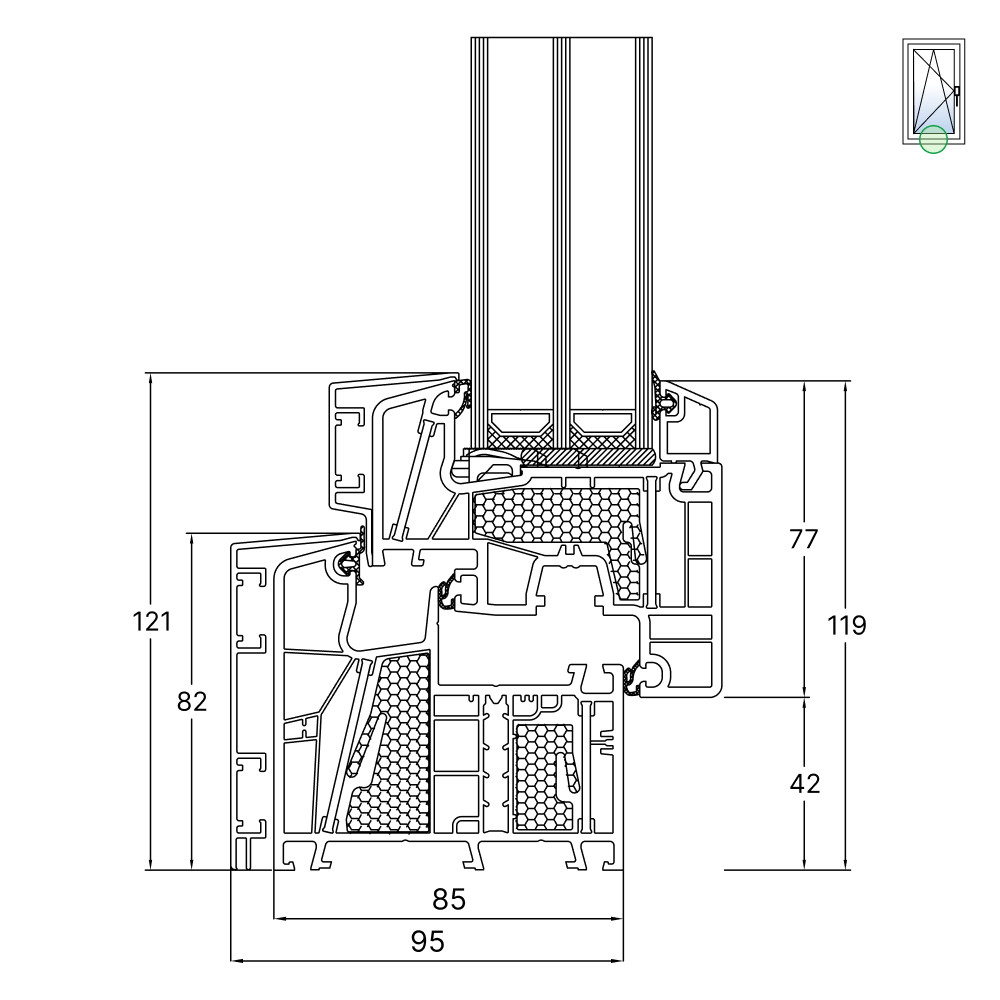

6-chamber aluclad vinyl profile with an installation depth of 3⁹⁄₁₆ (90 mm)
R-value of 7.8 based on configuration (U_w-values 0.73 W/m²K)
Excellent protection from wind and weather with extruder-formed 3-point sealing
Triple glazing up to 1⁷⁄₈ inches (48 mm) thick
Sound Reduction of ≤ 41dB possible based on configuration
Obscure glass options available.
Winkhaus hardware with multipoint locking and a range of security levels
All profiles are free of lead, cadmium and barium.
Can be manufactured in shapes, angles and arches to suit any facade.
Colours, finishes and decors available to suit any project

Optional Features:

Additional chambers filled with high-pressure foam insulation
Resistance Class II (RC2) security hardware
activPilot Select with discrete hidden hinges, or activPilot Comfort with parallel opening mechanism
Magnetic lock sensors

Equipment Options

Muntins and Grilles

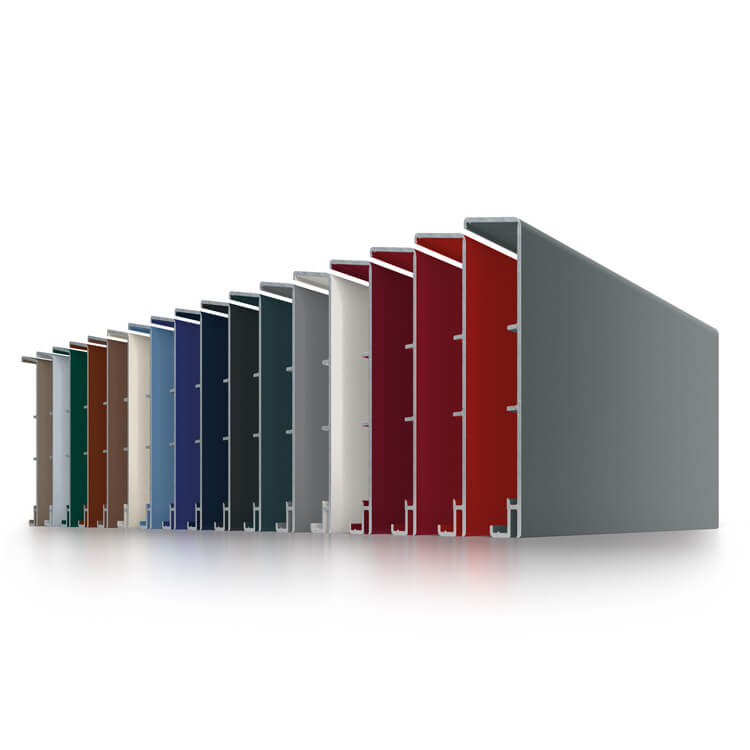

Window Colours and Decors

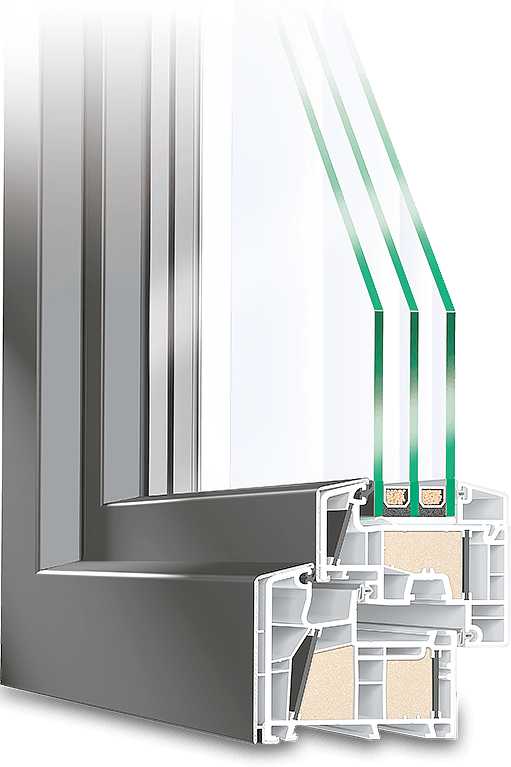

TwinSet Energeto 8000ED – A profile that does it all

The TwinSet Energeto 8000ED takes the strength and aesthetics of aluminum clad vinyl models and combines it with the superior energy efficiency of the Energeto series. The result is a sharp looking modern window with excellent security and weather resistance that can simultaneously achieve passive house insulation values while still being affordable. The special sealing system and polyurethane foam filled chambers minimize heat-loss while preventing water from entering the home.

The TwinSet Energeto 8000ED begins saving you money as soon as it is installed ensuring steady, long term energy savings and comfort. Domestic windows will never stop costing you.

Safety First

A common shortcoming of pure vinyl frames is security. However, with its carbon fiber reinforced inserts and metal cladding, the TwinSet Energeto 8000ED provides a level of durability and protection not afforded by single material models. Multipoint locking and the option of further security levels including laminated safety glass ensure there is a solution for any application.

Beautiful Facades

A range of RAL colours for the aluminum shell and decorative foils for the interior can be combined for a unique look. Ornamental glass and fixture options offer further opportunities for personalization and accenting your home.

The most popular energy saving windows at a glance

Want to learn more about energy saving and how you can save up to 40% on costs? Then head to our informative page on energy efficient windows and discover the thermal features that set our window profiles apart.
