It is no surprise aluminum windows are highly valued nowadays. Compared to uPVC or timber windows, they are provide the unmatched weather resistance. At the same time, they are highly stable and make it possible to create large windows. The greatest advantage, however, is the excellent thermal insulation: the Schüco AWS 112 IC (Insulation Cov) is the world's first aluminum window to meet the strict criteria of the passive house. It also combines three decisive advantages in one system: the proven properties of aluminum windows, excellent thermal insulation and narrow profiles - for maximum glass transparency.

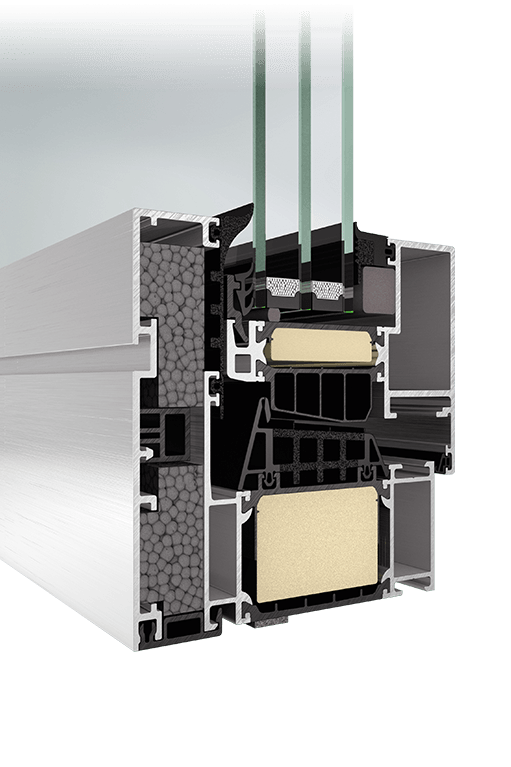

The Schüco AWS 112 IC At a Glance
✔ U-value = 0.8 W/(m²K)
✔ 120 mm view width
✔ Triple glazing with Ug value =of 0.6 W/(m²K)
✔ A plastic spacer is used for the entire aluminum window of the
Uwvalue = 0.75 W/(m²K)
✔ Optimised thermal insulation thanks to insulated facing shell with thermal bridge-free fastening.
✔ 3-chamber construction
✔ Centre seal and rebate seal
✔ Special corner and T-connections ensure high stability
✔ Novel principle of thermal insulation in the glass rebate
✔ New sash frame design based on block design: narrow face widths combined with large glass surfaces
✔ Schüco TipTronic® available for motorised hardware solutions
✔ Burglar protection certified up to RC 3
