Aluminum bifold doors

Modern aperture to nature

Our aluminum systems

The mechanism of a bi-folding door used to be popular particularly for interior room dividers or closets.

Thanks to innovative technology and excellent thermal performance, bifold doors are now in no way inferior to other door systems such as tilt and slide doors or lift and slide doors.

A bi-fold door is also perfectly suited as a patio door or for your balcony and available at reasonable prices.

Each element has its own frame and runs in special rails. The elements can be easily slid aside and folded like an accordion.

A custom-made aluminum folding door is suitable for everyone who wants to enjoy a maximum view.

Panorama without limits

Do you want light-flooded rooms that allow generous access to the patio or balcony? With their characteristic design, aluminum folding sliding doors are an excellent option for this purpose. Bifold doors consist of any number of individual modules that are connected to each other and to which special rollers are mounted. These rollers run smoothly in rails on the ceiling and floor side, making the bi-fold door easy and convenient to operate. The special fittings allow vertical rotation of each panel and can be slid together.

This design allows a highly individual opening width. In addition - unlike tilt and slide doors or lift and slide doors - it is possible to open an aluminium folding door almost completely across the entire width of the frame. In the case of bi-folding doors, glass walls of very large dimensions can be realised by the construction of individual elements with slim frames. Frames made of aluminum also provide additional stability.

A plus in comfort

Do you want light-flooded rooms that allow generous access to the patio or balcony? With their characteristic design, aluminum folding sliding doors are an excellent option for this purpose. Bifold doors consist of any number of individual modules that are connected to each other and to which special rollers are mounted. These rollers run smoothly in rails on the ceiling and floor side, making the bi-fold door easy and convenient to operate. The special fittings allow vertical rotation of each panel and can be slid together.

Excellent thermal properties can be achieved through insulation technology specially developed for aluminum profiles, high quality glass and special seals between the individual door modules. The low maintenance effort required with an aluminum folding door is also worthy of special mention, as the material is extremely durable and does not wear out.

Noble and timeless optics

Aluminum doors and windows are timeless classics. They fit in perfectly with any architectural style, while appearing more luxurious than doors made of vinyl. A further advantage of aluminum folding doors is our extensive range of design options.

The frames are designed according to your wishes using special coating processes. The outside and inside do not have to have the same look, even different colours are modern and popular.


At Neuffer we offer you a choice of two high-quality aluminum profiles for bifold doors

These are, among other aspects, adjustable in terms of:

  • Number and size of the individual modules
  • Colour coating
  • Glazing

Reynaers CF 77

The CF (Concept Folding) 77 is a stable, highly insulating profile for aluminum bifold doors with an installation depth of 77 mm. With its aesthetically narrowly framed elements, it provides a generous view of the terrace or exterior, making the interior appear larger.

Depending on individual requirements and the installation situation, the CF 77 can be used to create doors with 2 to 8 elements. Each module can have dimensions of up to 1200 x 3000 mm, glazed elements up to 63 mm thickness and a weight of up to 120 kg. The integrated and centrally installed system with floor rollers ensures user-friendly and easy operation. The first door sash can also be used as a window or French door due to a turning mechanism.

In addition to the design variant "Functional", you can choose the even thinner Slim-Line version CF 77-SL for maximum light incidence. Both the functional and the slim version of this folding door are available with 4 different threshold solutions each.

While the "High Performance" version defies even extreme weather conditions with driving rain and high wind loads, the "Double Weather Seal" version is particularly suitable for renovations and combines high weather resistance with a low threshold. The "Low Treshold" option offers a low treshold with height of 18 mm. very low threshold. With the "Flat Bottom" configuration, a completely level and barrier-free access is guaranteed, which is particularly suitable for very frequently used entrances and exits.

The CF 77 profile meets the highest technical demands. In addition, its fittings meet the security requirements of resistance class 2 (RC 2) for all variants, thus offering reliable burglary protection.

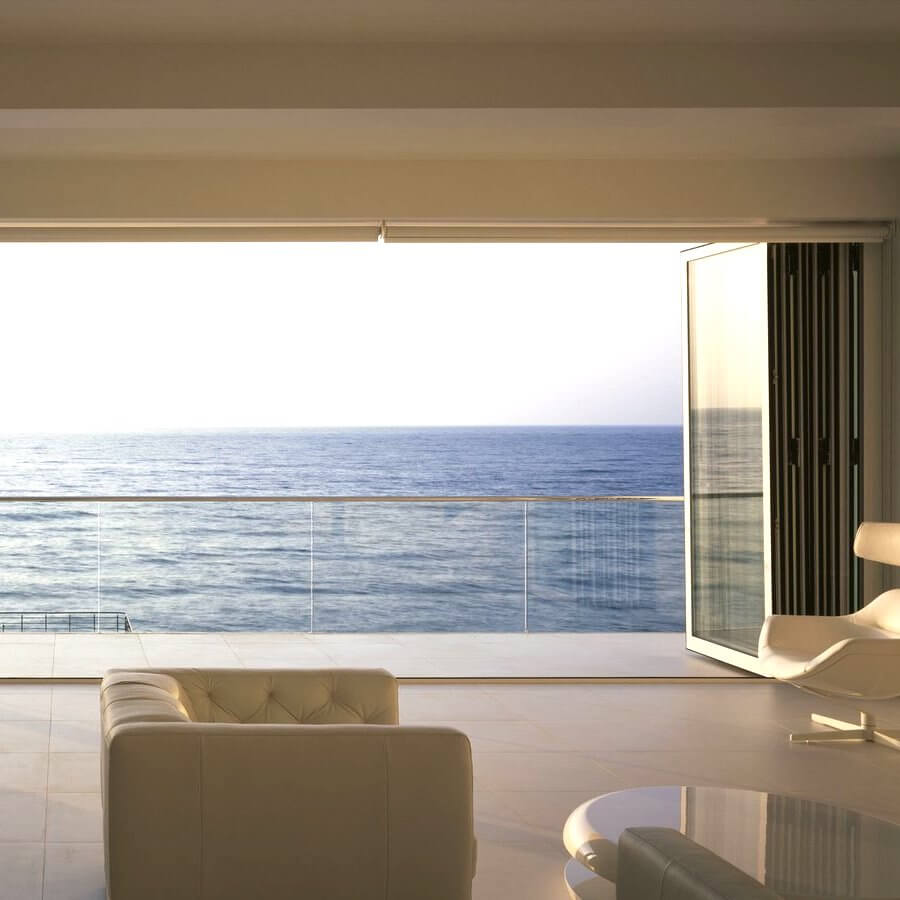

Reynaers CS 77 interior view

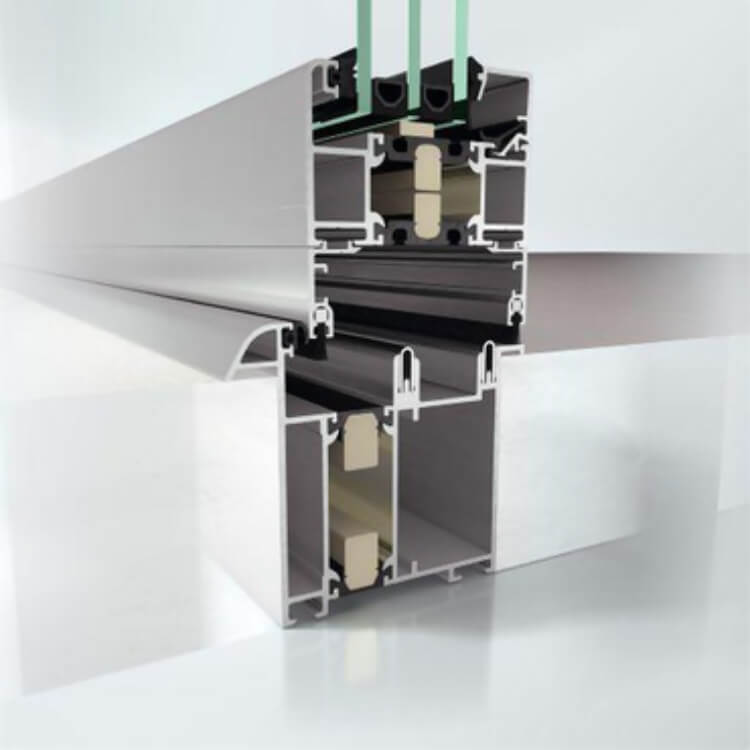

Schüco ASS 70 FD

With the ASS 70 FD from Schüco, you are choosing a thermally insulated folding door system for public and private buildings.



Schüco ASS 70 interior view

The CF (Concept Folding) 77 is a stable, highly insulating profile for aluminum bifold doors with an installation depth of 77 mm. With its aesthetically narrowly framed elements, it provides a generous view of the terrace or exterior, making the interior appear larger.

Depending on individual requirements and the installation situation, the CF 77 can be used to create doors with 2 to 8 elements. Each module can have dimensions of up to 1200 x 3000 mm, glazed elements up to 63 mm thickness and a weight of up to 120 kg. The integrated and centrally installed system with floor rollers ensures user-friendly and easy operation. The first door sash can also be used as a window or French door due to a turning mechanism.

In addition to the design variant "Functional", you can choose the even thinner Slim-Line version CF 77-SL for maximum light incidence. Both the functional and the slim version of this folding door are available with 4 different threshold solutions each.

While the "High Performance" version defies even extreme weather conditions with driving rain and high wind loads, the "Double Weather Seal" version is particularly suitable for renovations and combines high weather resistance with a low threshold. The "Low Treshold" option offers a low treshold with height of 18 mm. very low threshold. With the "Flat Bottom" configuration, a completely level and barrier-free access is guaranteed, which is particularly suitable for very frequently used entrances and exits.
