Energeto 8000ED

The elegant passive house certified profile

Uw - Wert
≥ 0.74

Passivhaus Institute Logo small

Energeto 8000ED

Whether you are renovating or building, insulation is an important consideration. The Energeto 8000ED series meets the highest European requirements including those for passive houses and offers U-values well beyond Energy Star standards. This is made possible by innovative fiber-reinforcement and a special polyurethane foam filled profile which boots the frame's insulation ability.


0.74

U-value W/m²K

7.7

R-value hr.ft2.°F/BTU

3 3⁄8"

Frame Depth

3

Sealing Levels

Optional Features:

  • Hidden drainage channels
  • Upgrade to resistance class II possible (RC2)
  • activPilot Select hardware with discrete hidden hinges
  • activPilot Comfort with parallel opening for ventilation
  • Magnetic lock monitoring for integration with ome security systems

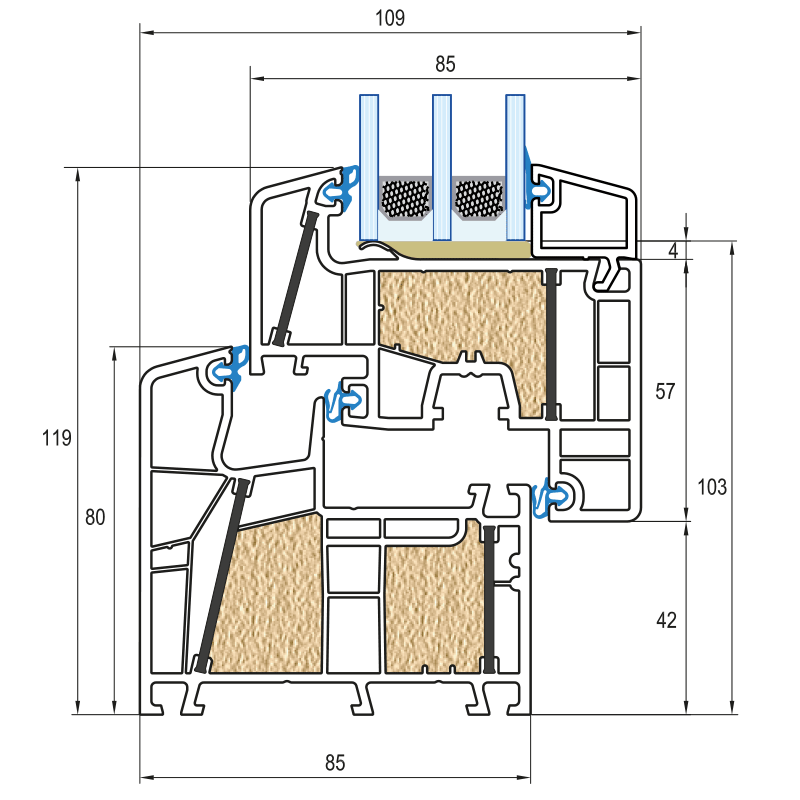

Technical Details of Energeto 8000ED Profiles

  • Passive House certified
  • 7.7 R-value achievable based on configuration
  • High-pressure polyurethane foam insulation and carbon fiber reinforcement
  • Innovative adhesive bonding insulates glazing and prevents thermal bridging.
  • Ultradur® inserts create a multi-chamber profile.
  • 338 inch (85 mm) installation depth for larger insulating chambers
  • Triple glazing up to 178inch (48 mm) thickness.
  • Sound insulation ≤ 41dB
  • Available in classic white and with decors.
  • Extremely weather resistant due to modern vinyl material mixtures
  • 3-point sealing with gaskets available in black and white.
  • Quality German hardware with multi-point locking for burglary protection.
  • 98.2% recyclable profile and lead, cadmium and barium free.



Certificates


Saving Energy & Money with the Energeto 8000ED

Windows and doors are typically the number one source of energy loss in homes based on studies and thermal imaging. The Energeto 8000ED profile easily solves this via a combination of advanced features , such as Ultradur® carbon fiber inserts, which eliminate the effects of thermal bridging while helping to create the multi-chamber design required for an efficient profile. Next, multiple chambers are filled with precision high-pressure foam giving the frame a substantial boost in insulation while also reducing its overall heat conductivity.

Passive house efficiency using Ultradur® inserts and foam-insulated cavities lead to long-term savings

Reliability & Security

In addition to their superb energy efficiency, the Energeto 8000ED models also meet the highest standards of burglary protection. German made Winkaus activPilot hardware ensure durability and security with a range of further upgrade options to suit your requirements based on the window's location.

Individual Design

vinyl windows using Energeto 8000ED profiles can be specified to suit the requirements of any project. From standard white to a range of RAL colours and decors, including traditional wood finishes. Further options include ornamental glass for decoration or privacy, and a wide selection of interior hardware. Frames can be manufactured in whatever custom shape you require including arches, circles, ovals, trapezoids and more. All of our products are custom built for your specific project.

The most popular energy-saving windows at a glance

Want to learn more about energy saving and how you can reduce costs by up to 40%? Then head to our informative page about energy-efficient windows and discover the thermal features that set our window profiles apart.

View energy-saving windows
